Product Highlights:
- ROL0 flux classification
- No-Clean tacky flux
- Optimized for Lead-free and standard allow systems
- Designed for LGA, BGA & CSP components
- Halogen free oer EN14582 test method
- Clear residue
- Low voiding
- Excellent wetting compatibility on most board finishes
- REACH compliant
Available Alloys
|
Alloy |
Temp °C |
Temp °F |
|
63Sn/37Pb |
183 |
361 |
|
62Sn/36Pb/2Ag |
179 |
354 |
|
62.8Sn/36.8Pb/0.4Ag |
179-183 |
354-361 |
|
60Sn/40Pb |
183-191 |
361-376 |
|
43Sn/43Pb/14Bi |
144-163 |
291-325 |
|
42Sn/58Bi |
138 |
280 |
Test Results
|
Test J-STD-004 or other requirements (as stated) |
Test Requirement |
Result |
||
|
Copper Mirror |
IPC-TM-650: 2.3.32 |
L: No breakthrough |
||
|
Corrosion |
IPC-TM-650: 2.6.15 |
L: No Corrosion |
||
|
Quantitative Halides |
IPC-TM-650: 2.3.28.1 |
L: <0.5% |
||
|
Electrochemical Migration |
IPC-TM-650: 2.6.14.1 |
L: <1 decade drop (No-clean) |
||
|
Surface Insulation Resistance 85 oC, 85% RH @ 168 Hours |
IPC-TM-650: 2.6.3.7 |
L: 100 M (No-clean) |
||
|
Tack Value |
IPC-TM-650: 2.4.44 |
35g |
||
|
Viscosity - Malcom @ 10 RPM/25 oC (x103mPa/s)- Sn63 T3/T4 |
IPC-TM-650: 2.4.34.4 |
Print: 195-300 Dispensing: 100-140 |
||
|
Visual |
IPC-TM-650: 3.4.2.5 |
Clear and free from precipitation |
||
|
Conflict Minerals Compliance |
Electronic Industry Citizenship Coalition (EICC) |
Compliant |
||
|
REACH Compliance |
Articles 33 and 67 of Regulation (EC) No 1907/2006 |
May contain up to 1% w/w of ethoxylated 4-nonylphenol |
||
Storage & Handling:

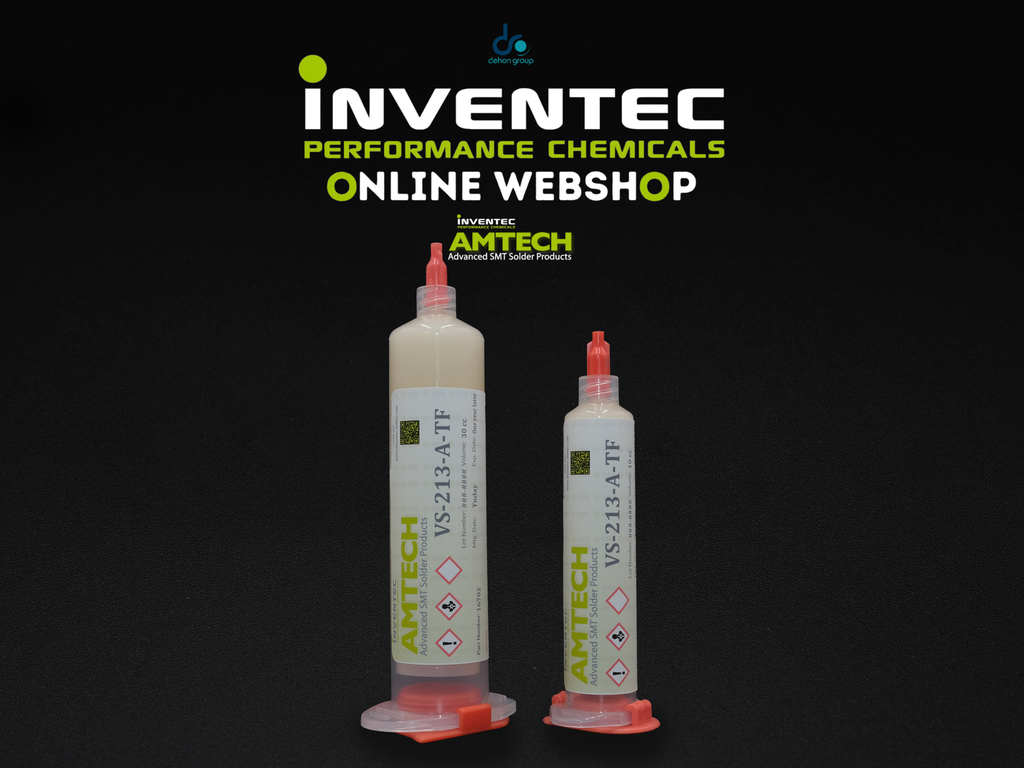

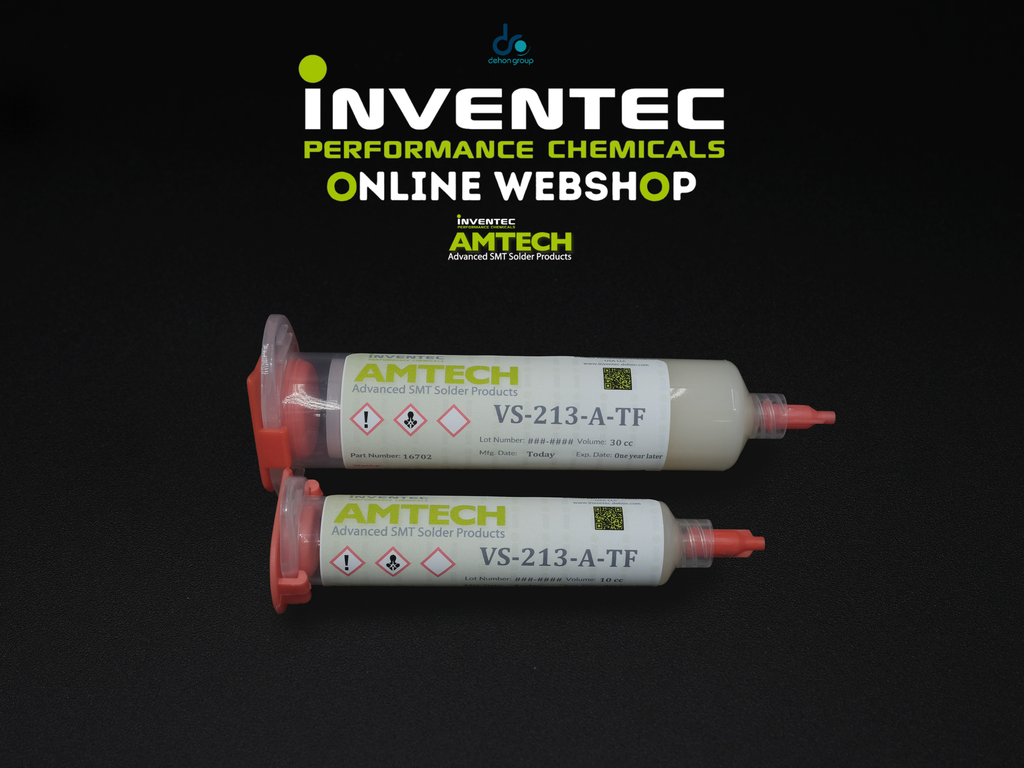

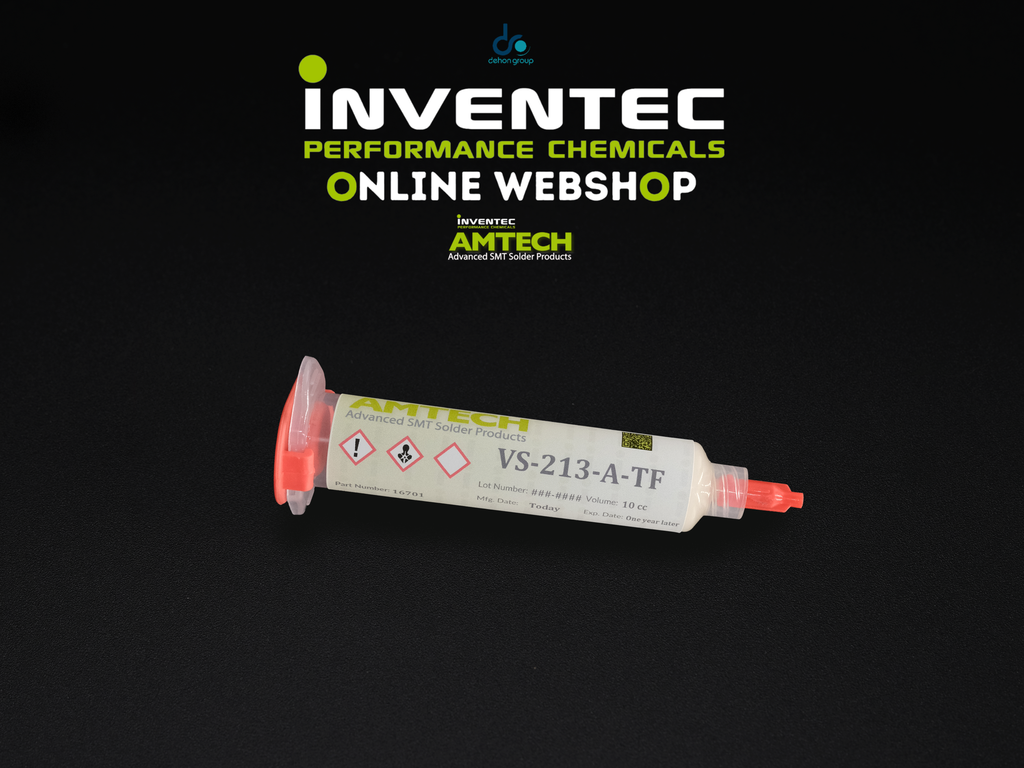

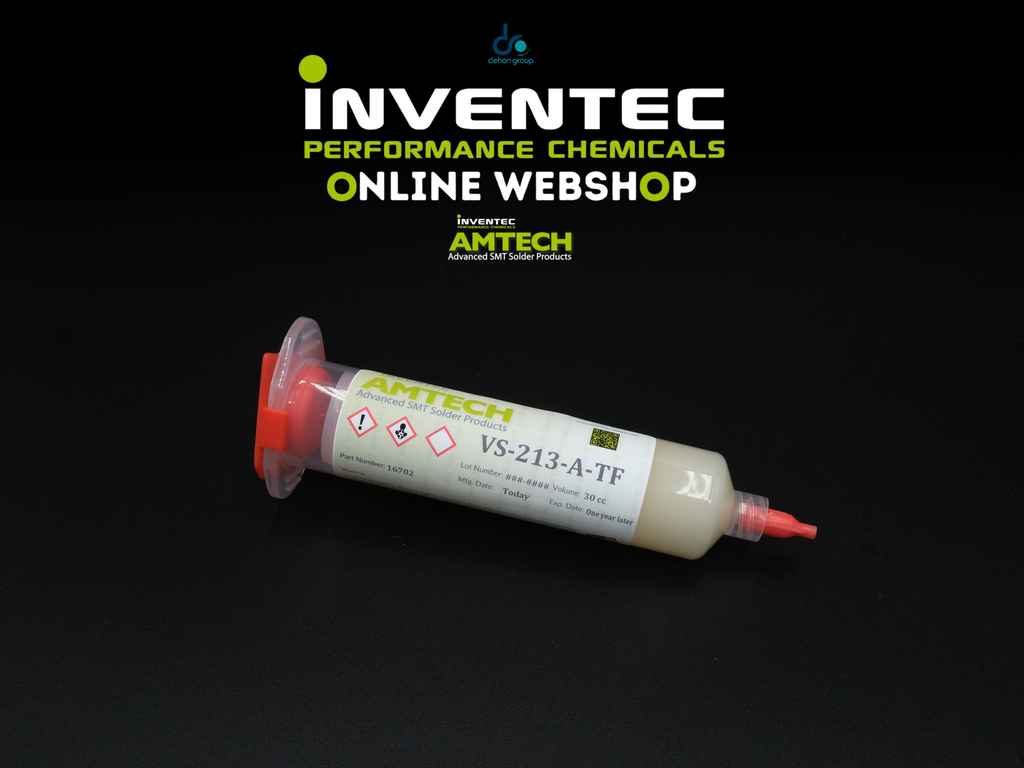

Tacky flux should be stored at room temperature (20-25 °C). Syringes and cartridges should be stored vertically with the dispensing tip down. Properly stored tacky flux has a 12 month shelf life.
Cleaning:
VS-213A-TF is a no clean tacky flux that can be left on the board for many SMT assemblies. For applications requiring cleaning, VS-213A-TF can be cleaned using commercially available flux residue removers such as INVENTEC Promoclean™and Promosolv™ cleaning solvents.
